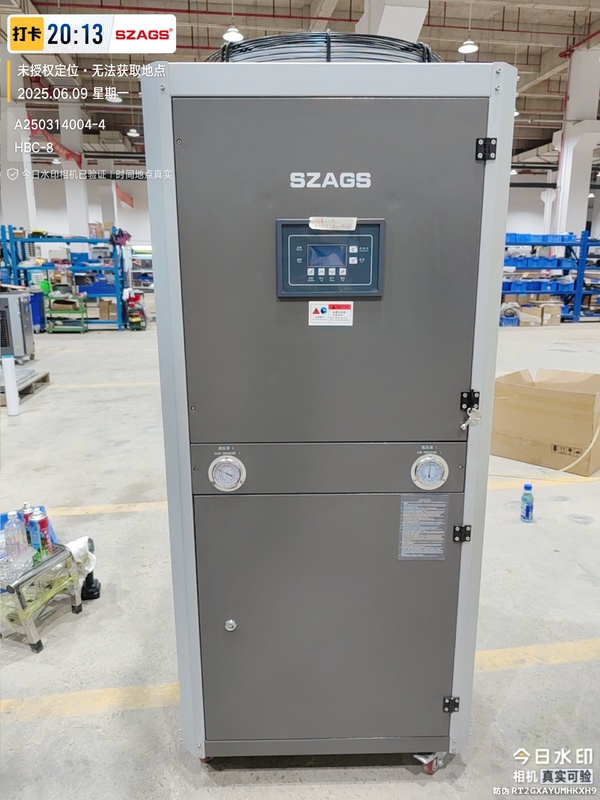

8ton air cooled environmentally friendly chiller
SZAGS provides global users with a full set of industrial refrigeration equipment solutions and supporting projects. Its main products include environmentally friendly freezers, screw freezers, low-temperature freezers, oil coolers, hot and cold temperature controllers, laser chillers, PCB special chillers and other series with thousands of varieties. They are widely used in rubber and plastics, pharmaceutical chemicals, electronic circuits, electroplating and coating, printing plate making, beverage and daily chemical industries.
The cleanest and most recommended method of cooling is using a plastics 0RT chiller. A plastics chiller is a refrigerated device that cools plastics throughout the manufacturing process.
Chiller Specification
| Model | HBC-8 | ||
| nominal cooling capacity | kcal/h | 19608 | |
| kw | 22.8 | ||
| input power | kw | 8.55 | |
| power supply | 3PH/220-480V/50~60HZ | ||
| refrigerant | type | R410A | |
| type of control | expansion valve | ||

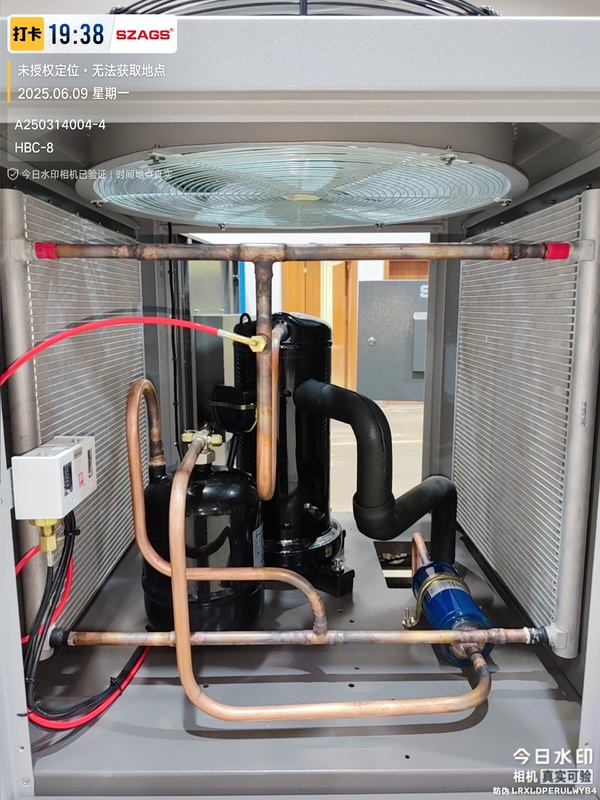

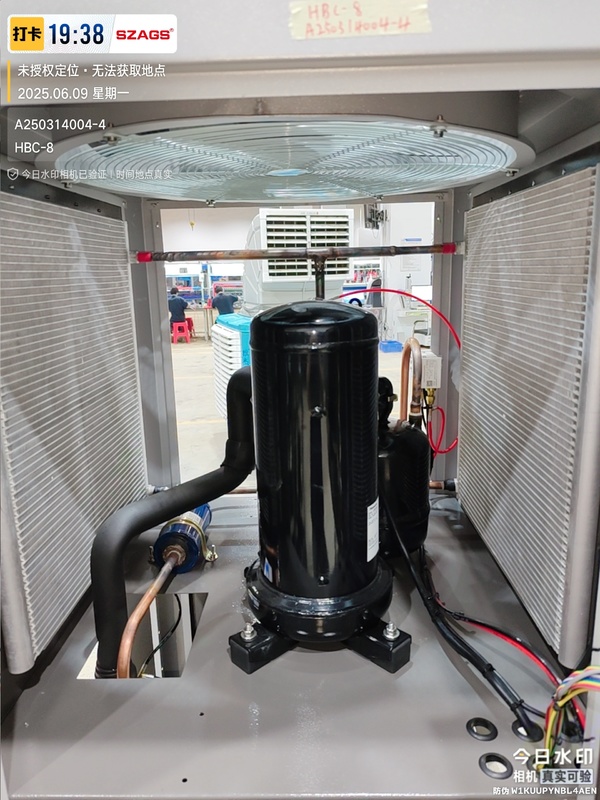

| compressor | type | hermetic scroll | |
| power(kw) | 6.9 | ||

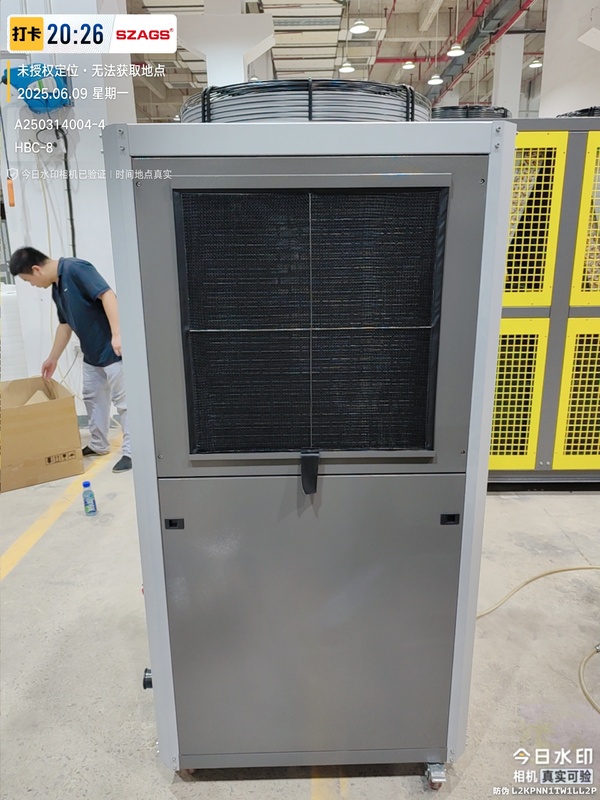

| condenser | type | high-efficient microchannel + low noise outer rotor fan | |
| cooling air flow(m3/h) | 8000 | ||
| evaporator | type | water tank with coil | |
| chilled fluid flow(m3/h) | 3.93 | ||
| volume(L) | 120 | ||

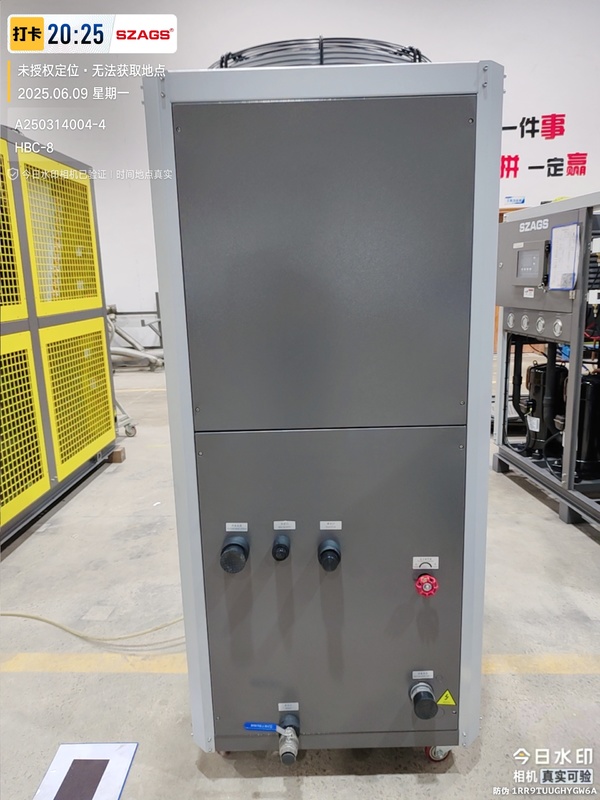

| inlet and outlet pipe diameter (inch) | 1-1/2" | ||
| pump | power (kw) | 1.1 | |
| lift(m) | 20 | ||
| safety protection | compressor over temperature, over current, high and low pressure, over temperature, flow switch, phase sequence, phase-missing, exhaust overheating, anti-freezing | ||
| weight | kg | 300 | |
| dimension | mm | 850*778*1795 | |
Nominal cooling capacity is according to:
Inlet chilled fluid temperature:17℃, Outlet chilled fluid temperature: 12℃.
Inlet cooling air temperature: 30℃, Outlet cooling air temperature:35℃.
The temperature range of chilled fluid is from 5℃ to 35℃.
The air cooled chillers are better to run while the ambient temperature is below 40°C.If not, the chillers will have high pressure alarm.Air-cooled chillers designed for high ambient temperatures are excluded.
Benefit of Process Chiller Applications
A chiller provides consistent temperature and pressure to your industrial process. Eliminating temperature and pressure variables simplifies the process development and optimization, ensuring the highest quality product. Instead of a wasteful, single-pass-through system, a chiller recirculates the cooling water.
Please tell these basic information so we can better quote you
1. your supply voltage (for example: 3PH220V60HZ)
2. the outlet and intlet water temperature of the chiller
3. cooling capacity you need
How to ensure your product with good quality?
1. Since 2004, we specialize in the production of industrial chiller, located in Shenzhen, China, our quality priority. All products go through a rigorous multi-inspection process to give customers multiple guarantees, and most accessories are made from world-class brands such as Danfoss, Copeland, Schneider Electric Components, etc.
2. After the installation of the industrial chiller, we will fill nitrogen for 24 hours of pressure maintaining test to check whether there is leakage in the cooling system of the chiller.
3. During the chiller test, we will provide test videos and pictures.
4. After the completion of testing and commissioning of the chiller, the chiller unit shall be cleaned and labeled, and then inspected before leaving the factory. The chiller shall be packed with plywood to ensure that the chiller is in good condition during transportation.
